v3 CAD Model?

Here's where you can find the official (and unofficial too) things like assembly instructions etc...
Post Reply
Turpinator
Printmaster!
Posts: 47
Joined: Sun Oct 18, 2015 6:39 pm

v3 CAD Model?

Post by Turpinator »

(wasnt sure where to put this)

Does anyone have a full copy of /all/ the CAD files for the v3? Id like to make a different fan shroud, but a large majority of the files seem to be missing from the github repo (https://github.com/seemecnc/Rostock-MAX-v3).

Ive opened an issue (https://github.com/seemecnc/Rostock-MAX-v3/issues/1), but I figured id check around here too.
User avatar
briankb
Printmaster!
Posts: 106
Joined: Thu Jun 13, 2013 11:50 am
Location: North Florida - USA
Contact:

Re: v3 CAD Model?

Post by briankb »

Some of the cad files, like the hot end are in a different repository.

try https://github.com/seemecnc/Machine_Ele ... 0%20Hotend

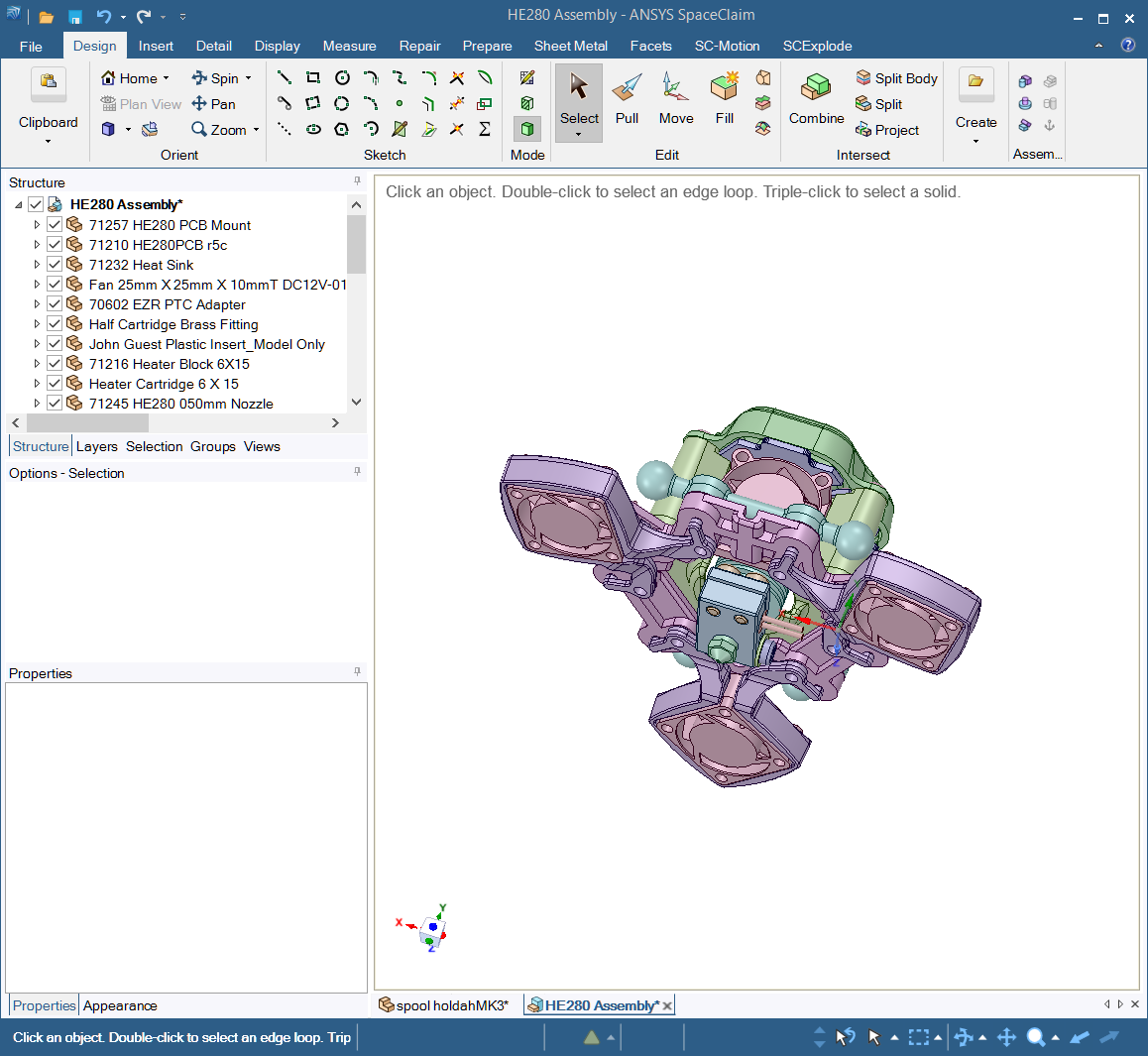

HE280 Aseembly via STEP Files in SpaceClaim
HE280 Aseembly via STEP Files in SpaceClaim
- CNC's: Rostock Max upgraded to v3.2, Prusa i3 MK3 MMU, Formlabs Form SLA, Shapeoko3 CNC, Palette+, Palette 2 Pro
- Software: Fusion 360, SpaceClaim Engineer, Simplify3D, Repetier Firmware & Host, VCarve Pro
Turpinator
Printmaster!
Posts: 47
Joined: Sun Oct 18, 2015 6:39 pm

Re: v3 CAD Model?

Post by Turpinator »

Ooo I did not see that repo. Thanks!

Solidworks 2017 for the files? Jeeez. At least its got the IGES files.
adarcher
Printmaster!
Posts: 138
Joined: Thu Nov 05, 2015 2:46 am

Re: v3 CAD Model?

Post by adarcher »

Turpinator wrote:Ooo I did not see that repo. Thanks!

Solidworks 2017 for the files? Jeeez. At least its got the IGES files.
They go into onshape.com pretty nicely.
User avatar
DeltaCon
Printmaster!
Posts: 616
Joined: Sat Nov 14, 2015 5:01 am
Location: Wessem, The Netherlands
Contact:

Re: v3 CAD Model?

Post by DeltaCon »

briankb wrote:Some of the cad files, like the hot end are in a different repository.

try https://github.com/seemecnc/Machine_Ele ... 0%20Hotend

I never saw the new HE in this detail, but it looks like the layerfanmounts would also retrofit to a V2 platform...
Aren't they sold separately?
I am DeltaCon, I have a delta, my name is Con, I am definitely PRO delta! ;-)
Rostock V2 / E3D Volcano / FSR kit / Duet 0.6

PS.: Sorry for the avatar, that's my other hobby!
