Weekend plans

Post by Qdeathstar » Fri Sep 30, 2016 6:55 pm

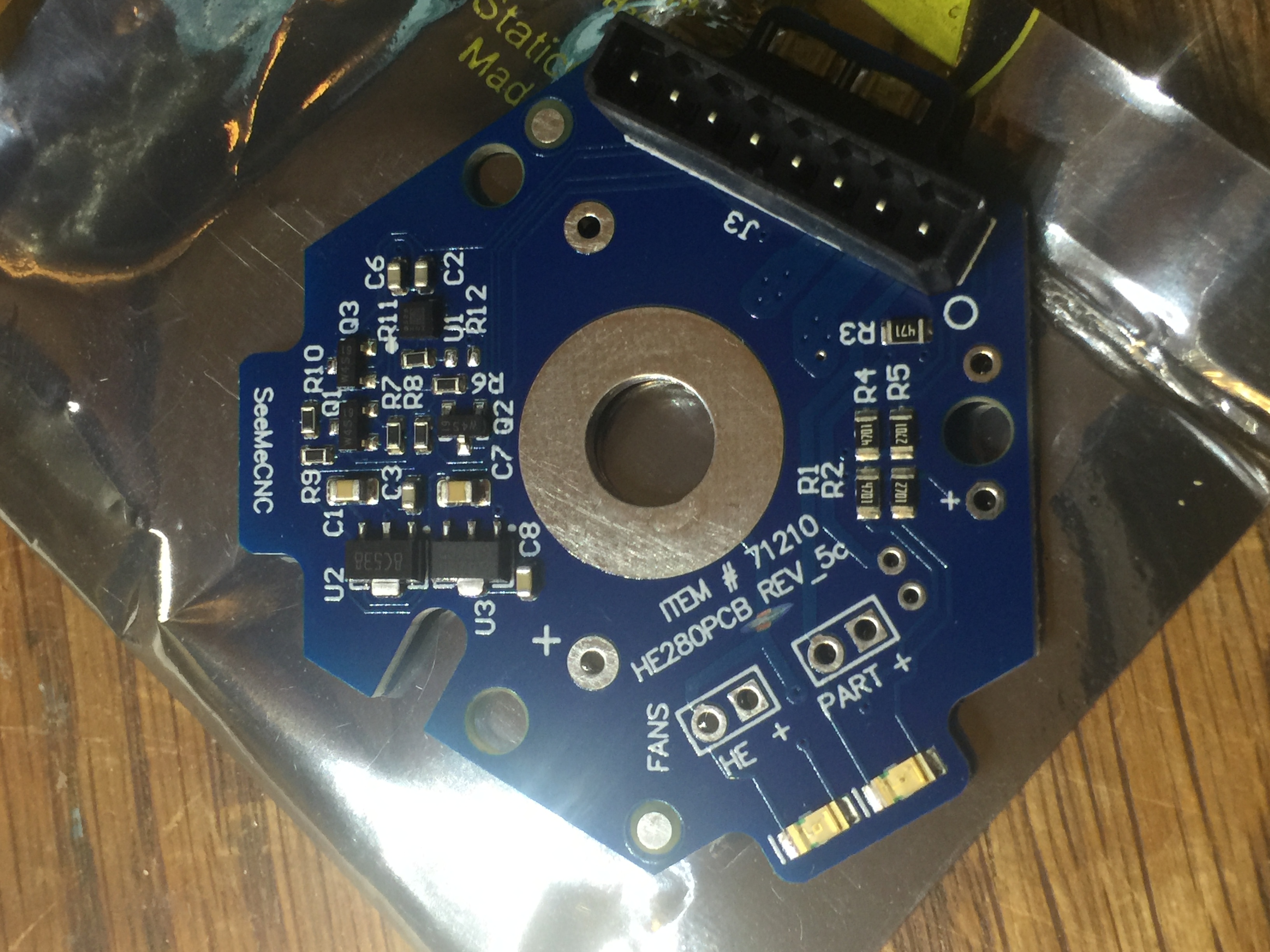

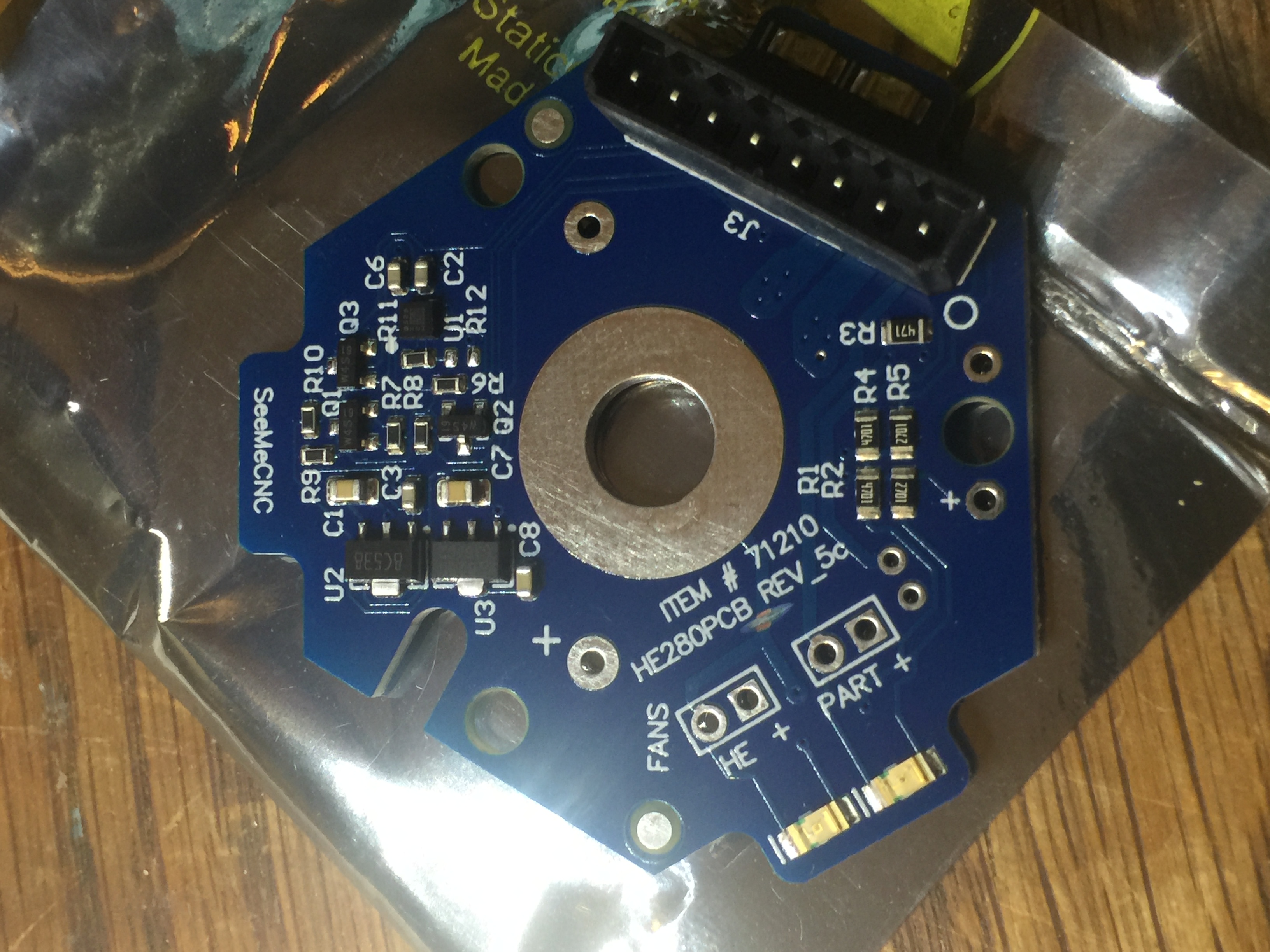

First up is the accelerometer board from seeMEcnc... i wonder where the thermistor connection is?

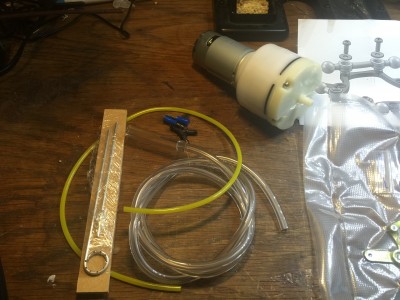

Next is a new cooling system. The Berd Air from MakerHive. I've saw that it has gotten generally positive reviews, so i'm excited to try it out. I designed a mount for it and will print it as soon as my Raspberry Pi mount (not pictured) prints :D It was nicely packaged, though i will have to ask what the deal is with the extra metal rod

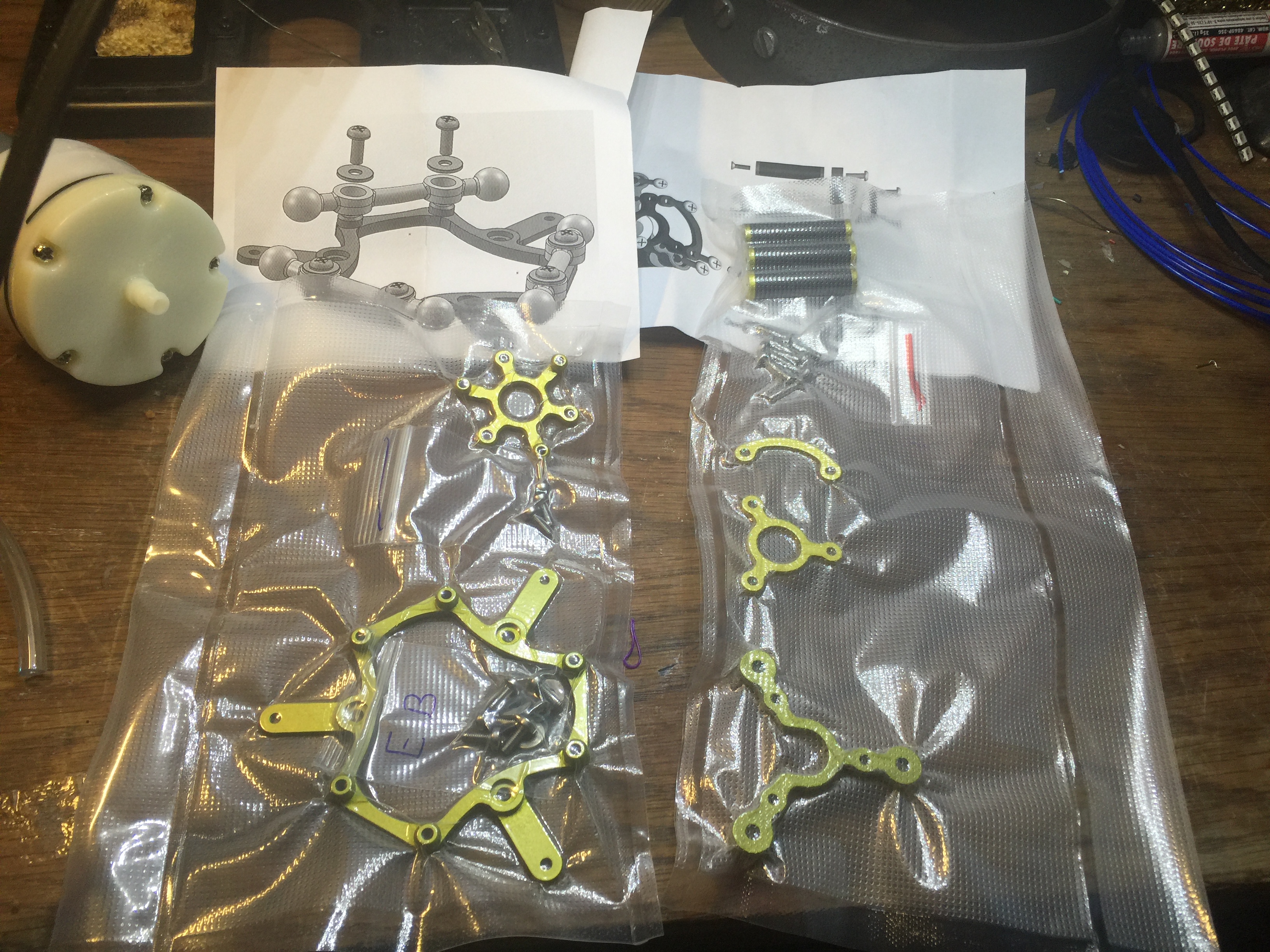

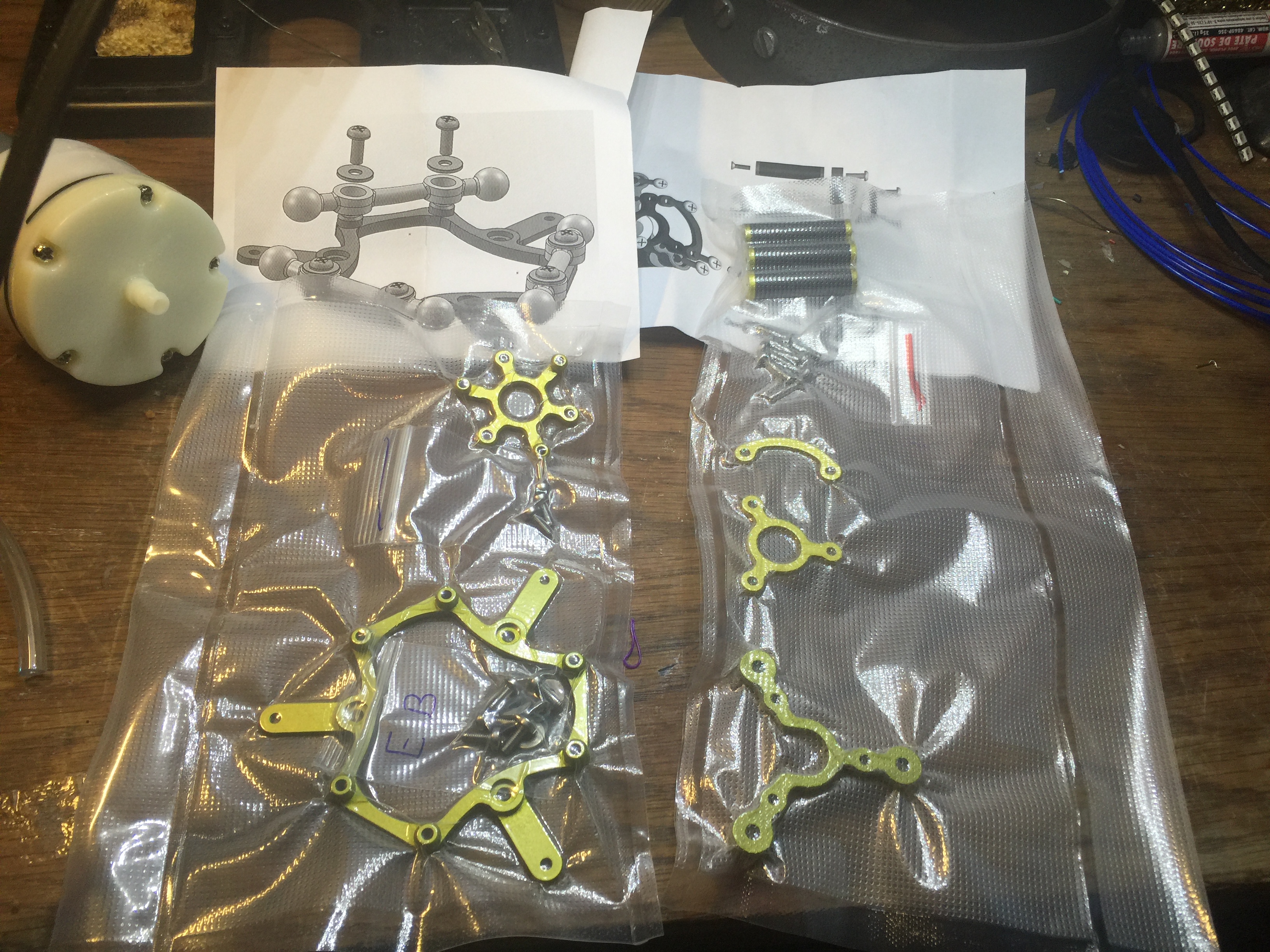

Last but not least, a new effector platform/hot end mount from 713maker.com. Looks like quality stuff. They were even kind enough to through in a free mount for the accelerometer, as it is still in beta. They included pictoral instructions to put it together, so i think i should be able to figure it out. :D


User avatar
mhackney
ULTIMATE 3D JEDDI
Posts: 5412
Joined: Mon Mar 26, 2012 4:15 pm
Location: MA, USA
Contact:

Re: Weekend plans

Post by mhackney » Fri Sep 30, 2016 7:12 pm

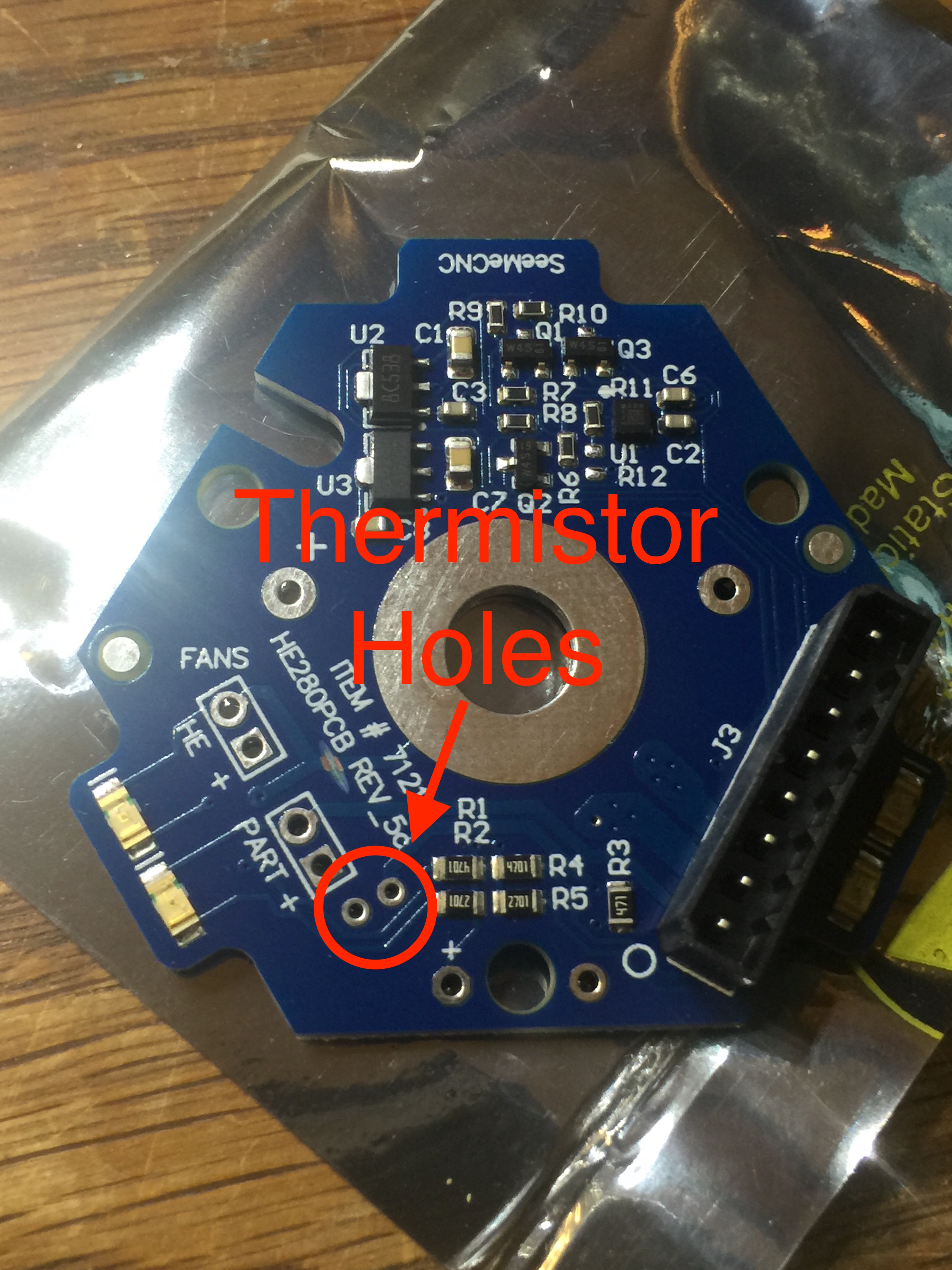

The thermistor connects to the 2 holes at the lower right by the label PART + Not the holes in the box, that's for the part cooling fan. They are the 2 unlabeled holes slightly to the right.

Sublime Layers - my blog on Musings and Experiments in 3D Printing Technology and Art

Start Here:
A Strategy for Successful (and Great) Prints

Strategies for Resolving Print Artifacts

The Eclectic Angler

User avatar
626Pilot
ULTIMATE 3D JEDDI
Posts: 1719
Joined: Tue May 14, 2013 12:52 pm

Re: Weekend plans

Post by 626Pilot » Fri Sep 30, 2016 11:29 pm

I hate unlabeled holes!

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Fri Sep 30, 2016 11:31 pm

kind of dissapointed that the accerometer board didn't come with the plastic cover... and it looks like they took a drimel to it to cut a trace.... But, as long as it works :D

User avatar
mhackney
ULTIMATE 3D JEDDI
Posts: 5412
Joined: Mon Mar 26, 2012 4:15 pm
Location: MA, USA
Contact:

Re: Weekend plans

Post by mhackney » Sat Oct 01, 2016 7:13 am

The cover is really part of the HE280 system. It is sized properly for the hotend and accelerometer mount on it. You'll likely have to design and print a custom cap depending on how and what you mount it to.

I did add a comment to the build guide about those holes. One of the annotation arrows in the photo is way off and it is not "intuitively obvious" which hole to use.

Sublime Layers - my blog on Musings and Experiments in 3D Printing Technology and Art

Start Here:
A Strategy for Successful (and Great) Prints

Strategies for Resolving Print Artifacts

The Eclectic Angler

User avatar
mhackney
ULTIMATE 3D JEDDI
Posts: 5412
Joined: Mon Mar 26, 2012 4:15 pm
Location: MA, USA
Contact:

Re: Weekend plans

Post by mhackney » Sat Oct 01, 2016 7:15 am


Sublime Layers - my blog on Musings and Experiments in 3D Printing Technology and Art

Start Here:
A Strategy for Successful (and Great) Prints

Strategies for Resolving Print Artifacts

The Eclectic Angler

User avatar
geneb
ULTIMATE 3D JEDDI
Posts: 4885
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Weekend plans

Post by geneb » Sat Oct 01, 2016 8:36 am

The image in Step 32 has two red arrows that are pointing to the thermistor lead holes. The blue arrows point to the heater lead holes.

I don't understand how that's even remotely vague. :D

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Sat Oct 01, 2016 8:43 am

I didn't even look at the directions yet! But I have put the effector unit together already... :)

User avatar
mhackney
ULTIMATE 3D JEDDI
Posts: 5412
Joined: Mon Mar 26, 2012 4:15 pm
Location: MA, USA
Contact:

Re: Weekend plans

Post by mhackney » Sat Oct 01, 2016 8:54 am

Gene, it's this image in step 30 https://d17kynu4zpq5hy.cloudfront.net/i ... LcLFr.huge

The red arrows do not point precisely to the holes. In fact, the red arrow on the right is pointing directly at the whole with the + next to it. Step 30 is where you route the thermistor leads not step 32. I figured it out before seeing the photo in step 32. That's why it is vague in step 30.

Sublime Layers - my blog on Musings and Experiments in 3D Printing Technology and Art

Start Here:
A Strategy for Successful (and Great) Prints

Strategies for Resolving Print Artifacts

The Eclectic Angler

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Sat Oct 01, 2016 9:20 am

The picture in mchackney's post is way clearer.

User avatar
Eaglezsoar
ULTIMATE 3D JEDDI
Posts: 7185
Joined: Sun Apr 01, 2012 5:26 pm

Re: Weekend plans

Post by Eaglezsoar » Sat Oct 01, 2016 7:47 pm

Qdeathstar wrote:The picture in mchackney's post is way clearer.

They always are, that's how he gets even with Gene.
“ Do Not Regret Growing Older. It is a Privilege Denied to Many. ”

User avatar
geneb
ULTIMATE 3D JEDDI
Posts: 4885
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Weekend plans

Post by geneb » Sat Oct 01, 2016 10:58 pm

I didn't do the photos for the He280. :(

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Sun Oct 02, 2016 11:15 pm

didn't get as far a long as i hopped... had issues with a new driver for led lights and got distracted by football.. so...

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Thu Oct 06, 2016 6:21 pm

Wow, I turned on the berdAir for the first time and i was shocked by how much air it moves at 100%... it seems like it was significantly more than the stock fan. It was loud, but thats kind of expected. I also mounted it on the side of my enclosure so im sure that it kind of amplifys the sound. With as much air as it puts out i doubt i'll have to run it over 20% for anything i print with ABS and it is almost whisper quite at those ranges :D


On the accelerometer board, can you just attached a 5mm led do the "LED" points on the board, (eg, is there already a current limiting resistor?)

johnoly99
Printmaster!
Posts: 736
Joined: Mon Mar 26, 2012 1:07 pm
Location: Goshen, IN

Re: Weekend plans

Post by johnoly99 » Thu Oct 06, 2016 8:40 pm

Hey Q,

Yes, there's a resistor in that LED circuit already. Drop on an led and you're good to go!




NOTED ON THE UNLABELED thermistor holes guys. We'll add that into the next rev of boards.

Yes, there is a trace cut on the boards, near the center ring. It's intentional. That trace connects the hotend body to the V- as an in-case for a contact type probe. but as we found the accel board, that trace was left and never altered before getting the first production run fabbed

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Sat Oct 08, 2016 10:10 pm

Was making great progress till Hurricane Mathew stole all my power. I still havnt gotten a print yet, but I'm working on that direction.. I'm pretty sure that the transformer blew, so power probably won't be restored till to tomorow evening at the earliest.

But, I did manage to get some pictures :)



One issue i did run into was that it seems like the spacing between the mounting hole and the led pins is too close. This represents a dead short, definately need a nylon washer... maybe on the next revision spread the holes apart a bit.



Mounted my new berdAir on the side of my enclosure. I designed the mount to snap in. It holds it securely and i can remove it if i need to. Also, i added a little hat so berdie doesn't get cold :D.


Nice overview of the 713maker.com effector and hot end mount. They gave me the mount for the accerometer board for free, and everything is nice and light. The new hotend ways about the same as the old one, despising adding the berdAir clip and accerometer board.


i made this "clip on" berdAir mount, i can easy snap if off so i can lower it to remove my nozzle if i need to. i needed a bit of hot clue to set it in place. I'm not sure how well it will hold up to the strains of printing, but we'll see.


I added a fan to move the air around my heated enclosure. I sort of feel like a lot of the heat is getting trapped at the top of my enclosure, i think maybe this fan will enable the chamber to heat more evenly.


Nice view of the underside of the 713maker effector mount and BerdAir hose. Like i said before, the berd air really pushes a lot more air that i'd expect. i can't wait to try it out


while i was at it i decided to add some proper led lighting instead of the strips. They even dimable..... took me forever to figure out you have to short out the ends of the led lights in order to get them to light up. (constant current).


nice overview

User avatar
crocky
Printmaster!
Posts: 270
Joined: Tue Aug 12, 2014 6:55 pm
Location: Werribee, Aust

Re: Weekend plans

Post by crocky » Mon Oct 10, 2016 7:40 pm

Qdeathstar wrote:First up is the accelerometer board from seeMEcnc... i wonder where the thermistor connection is?



Thanks for the heads up and I also note that mhackney has commented on the thermister holes too....
Bob
Rostock Max V2, Ball Cup Arms, New Carriages, HE280, Dampers, PSU Breathing, Simplify 3D, GeckoTek3D, Raspberry Pi3. Duet soon... Kossel Mini still under construction.
Delta's are the way!

Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Tue Oct 11, 2016 5:50 pm

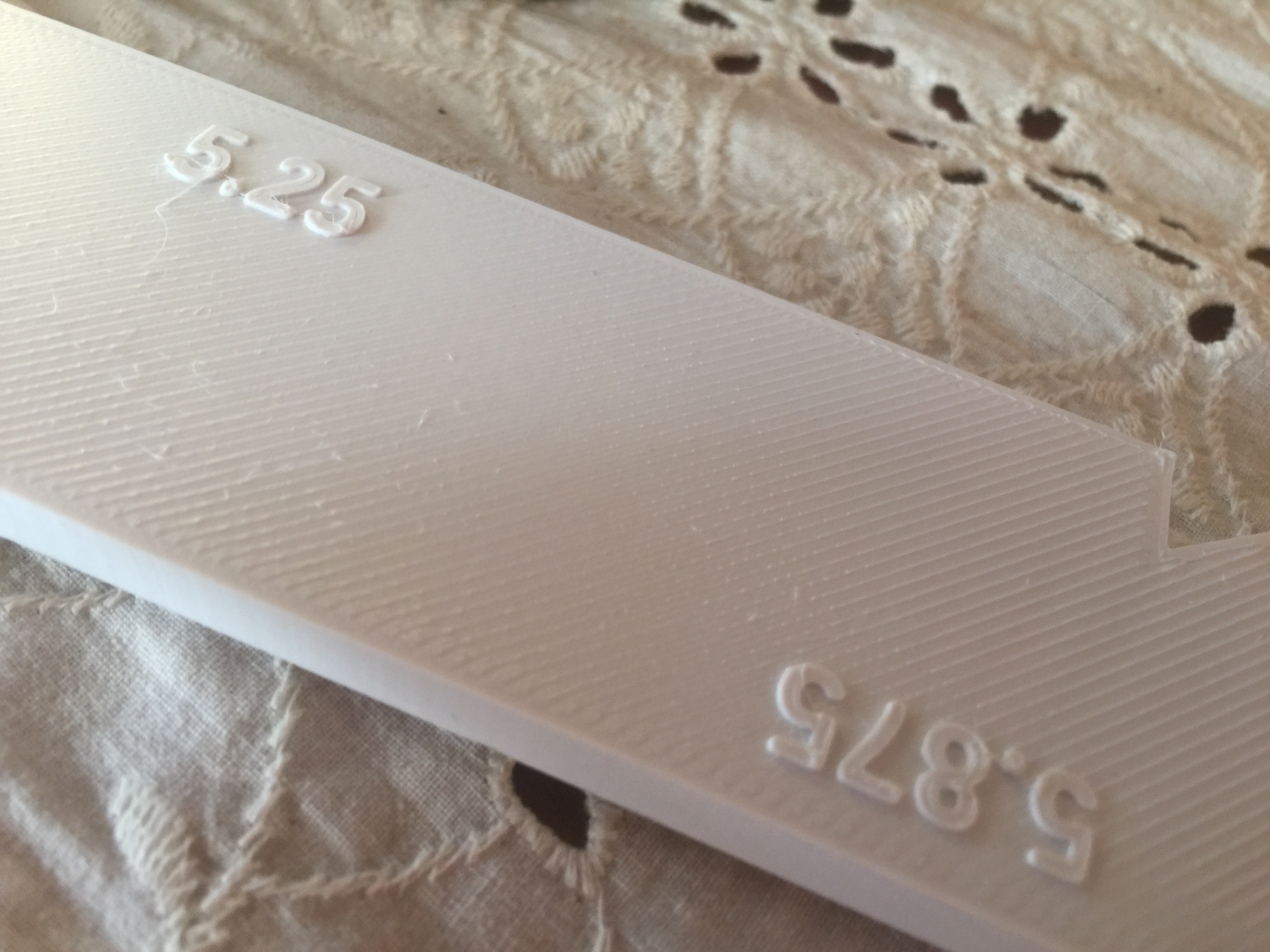

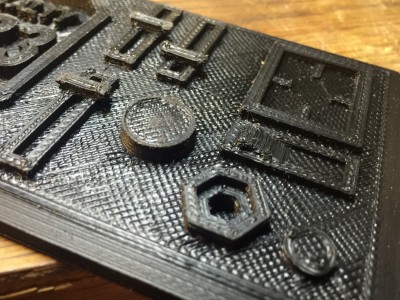

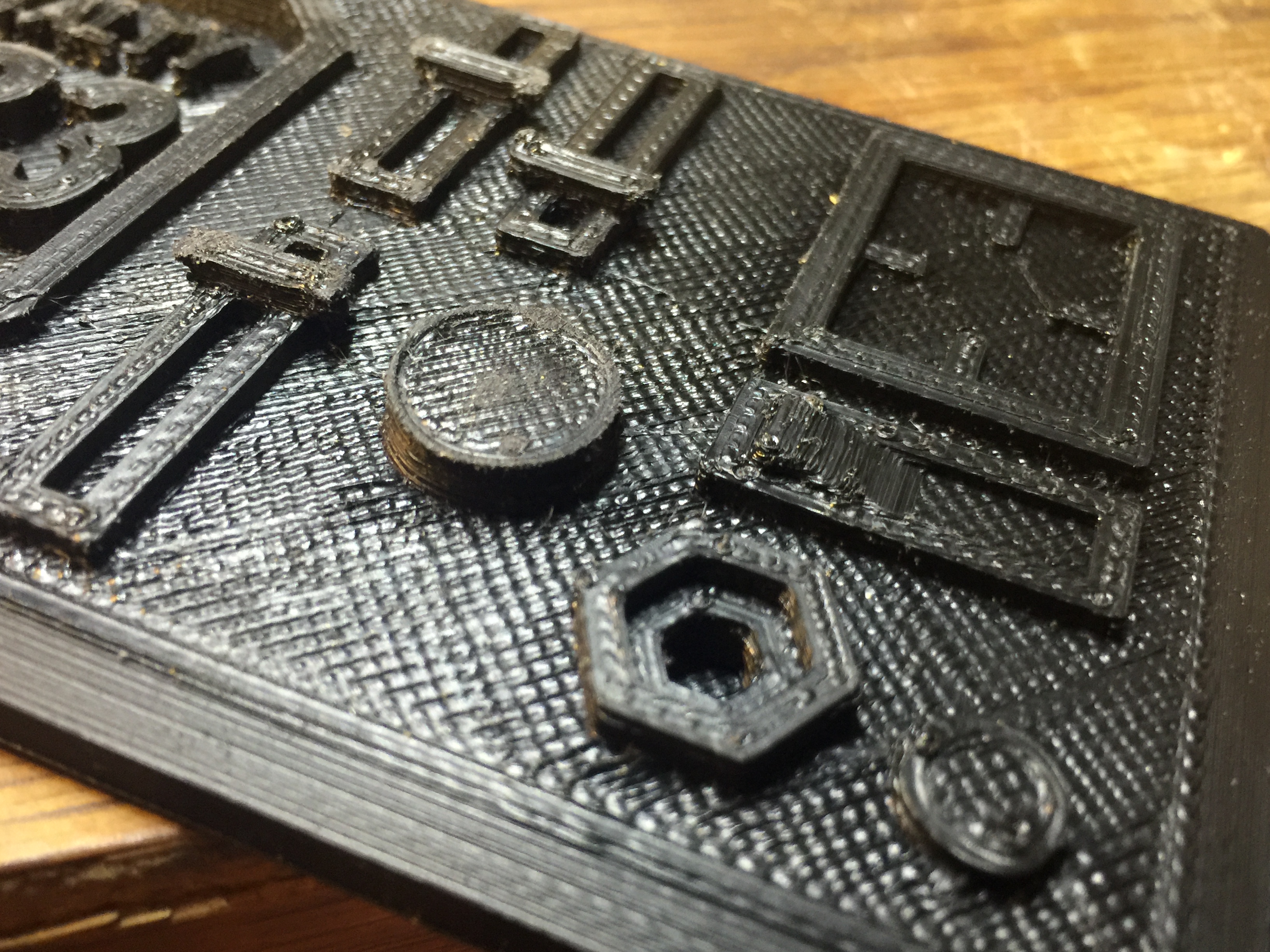

Here is a before and after (sorta of) they both are peices with a lot of top layer space. The berdAir makes a huge difference, that is probably the best upgrade of the three (although 713makers mount is visually stunning)

The white is after, black is before.


Qdeathstar
Printmaster!
Posts: 622
Joined: Wed Apr 13, 2016 7:42 pm

Re: Weekend plans

Post by Qdeathstar » Tue Oct 11, 2016 6:07 pm

To might be overextending a bit?

Zesty_Lykle
Printmaster!
Posts: 60
Joined: Thu Oct 27, 2016 2:45 pm
Location: Cyrpus
Contact:

Re: Weekend plans

Post by Zesty_Lykle » Tue Nov 08, 2016 7:57 am

Looking good.

Will need to get me an air pump as well. Would be interesting to see how I can incorporate that in my effector.

Lykle
Lykle
Design life, and enjoy.
