Rambo LEDs

Postby awander » Mon Sep 29, 2014 10:57 am

Does anyone know where to find out the function of the various LEDs on the Rambo board?
Andy Wander

User avatar
Jimustanguitar
ULTIMATE 3D JEDDI
Posts: 2625
Joined: Sun Mar 31, 2013 1:35 am
Location: Notre Dame area
Contact:

Re: Rambo LEDs

Postby Jimustanguitar » Mon Sep 29, 2014 11:24 am


Eric
Printmaster!
Posts: 726
Joined: Sat Aug 18, 2012 4:09 am
Location: Chula Vista, CA

Re: Rambo LEDs

Postby Eric » Mon Sep 29, 2014 11:33 am

http://reprap.org/wiki/Rambo_v1.2

They're all on the schematic if you know enough to be able to read the schematic.

But to summarize, there's a power LED and a status LED by the reset button. Two LED's near the USB chip for transmit and receive on the USB port. And the rest indicate when their respective mosfet outputs are enabled.

User avatar
Eaglezsoar
ULTIMATE 3D JEDDI
Posts: 7185
Joined: Sun Apr 01, 2012 5:26 pm

Re: Rambo LEDs

Postby Eaglezsoar » Mon Sep 29, 2014 5:02 pm

Jimustanguitar wrote:http://reprapelectro.com/wp-content/uploads/2014/09/RAMBo-1.1B-User-Manual.pdf

There's a little bit of it here.


Excellent PDF that should be downloaded by everyone using a Rambo board.
Great find!

awander
Prints-a-lot
Posts: 22
Joined: Mon Mar 26, 2012 3:22 pm

Re: Rambo LEDs

Postby awander » Mon Sep 29, 2014 5:10 pm

Yeah, I already had that doc, but thanks for posting it.

What is the function of the status LED?
Andy Wander

RocketMagnet
Printmaster!
Posts: 169
Joined: Sun Sep 14, 2014 3:22 pm

Re: Rambo LEDs

Postby RocketMagnet » Tue Sep 30, 2014 1:38 pm

I think the Status LED will flash when you press the reset button to let you know it's resetting/reset.
The flashing LED lets you know the Bootloader is loading... I think a bootloader is essentially like a computer BIOS for the board.. but I could be wrong?
Also I believe you'll be able to program it to perform whatever function you decide you want to assign to it and what you want it to indicate... useful debugging tool id guess?

From what I've seen from basic Arduino tutorials the "L" led is linked to a specific pin so you'll definitely know that pins State
as described here: http://arduino.cc/en/Main/ArduinoBoardUno

The Arduino stuff looks really interesting to me, the coding side looks simple enough and logically how it all works seems ok that I think
i'll buy some stuff to play with as I've limited base level electronics experience. Looks like fun and a good fit with 3D Printing
coupled with as far as I can tell the Rambo board is just a different flavour Arduino board?

Eric
Printmaster!
Posts: 726
Joined: Sat Aug 18, 2012 4:09 am
Location: Chula Vista, CA

Re: Rambo LEDs

Postby Eric » Wed Oct 01, 2014 3:13 am

awander wrote:Yeah, I already had that doc, but thanks for posting it.

What is the function of the status LED?


It's the utility LED on digital pin 13 found on nearly every general purpose Arduino since day one. If you loaded the arduino blink program, that's the LED that would blink. That pin isn't connected to any rambo hardware besides the LED itself, but is broken out on the pwm header.

I don't know if it's used as an indicator by any of the firmwares.

RocketMagnet
Printmaster!
Posts: 169
Joined: Sun Sep 14, 2014 3:22 pm

Re: Rambo LEDs

Postby RocketMagnet » Thu Oct 02, 2014 12:22 pm

Ok looks like It's intended function is definitely for debugging... well that's what the official Arduino Project Book manual states on page 11.

Though I suppose as you can code it to light however you like to feedback whatever you want it to....
Attachments

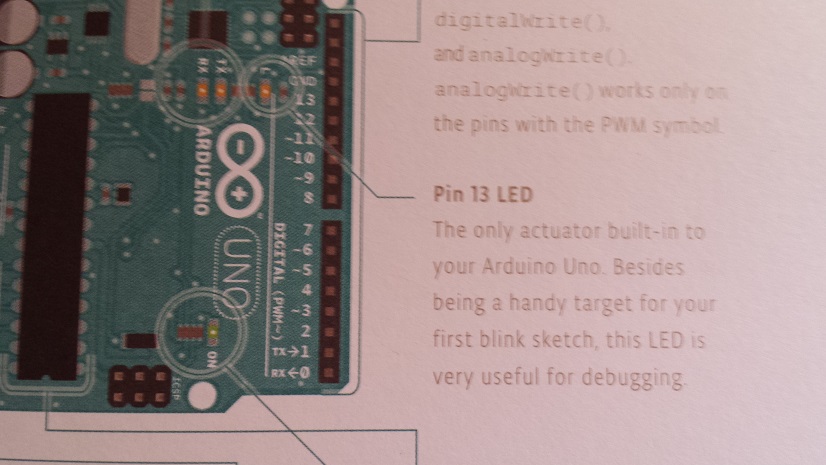

Arduino Manual Pin 13 LED

awander
Prints-a-lot
Posts: 22
Joined: Mon Mar 26, 2012 3:22 pm

Re: Rambo LEDs

Postby awander » Thu Oct 02, 2014 1:13 pm

Well, that is on the bare Arduino. I suspect ot's telling me something on the RAMBO board.

I'll have a peek through the code.
Andy Wander

User avatar
teoman
ULTIMATE 3D JEDDI
Posts: 1783
Joined: Sat May 24, 2014 5:43 pm

Re: Rambo LEDs

Postby teoman » Thu Oct 02, 2014 5:35 pm

On the Arduino the bootloader is the program that runs first. It is the part of the program that enables you to program the arduino over the usb (virtual serial) port using the Arduino IDE (interactive development environment, fancy word for arduino softeare). It consumes about 2kb of your microcontrollers memory ( which should be 32kb). You can do without it BUT then you would need to purchase a separate programmer device to program the thing.
When on mobile I am brief and may be perceived as an arsl.
