Upgrade V1 to accelerometer (wiring guide)

All things related to the Rostock MAX 3D Printer, the worlds FIRST Delta kit!
pippin88
Plasticator
Posts: 9
Joined: Tue Aug 06, 2013 12:12 pm

Upgrade V1 to accelerometer (wiring guide)

Postby pippin88 » Mon Feb 06, 2017 5:41 am

I've got a Rostock Max V1, and always found calibrating annoying. I saw the new HE280 accelerometer board and bought one straight away.

Then I had to figure out how to get it working.

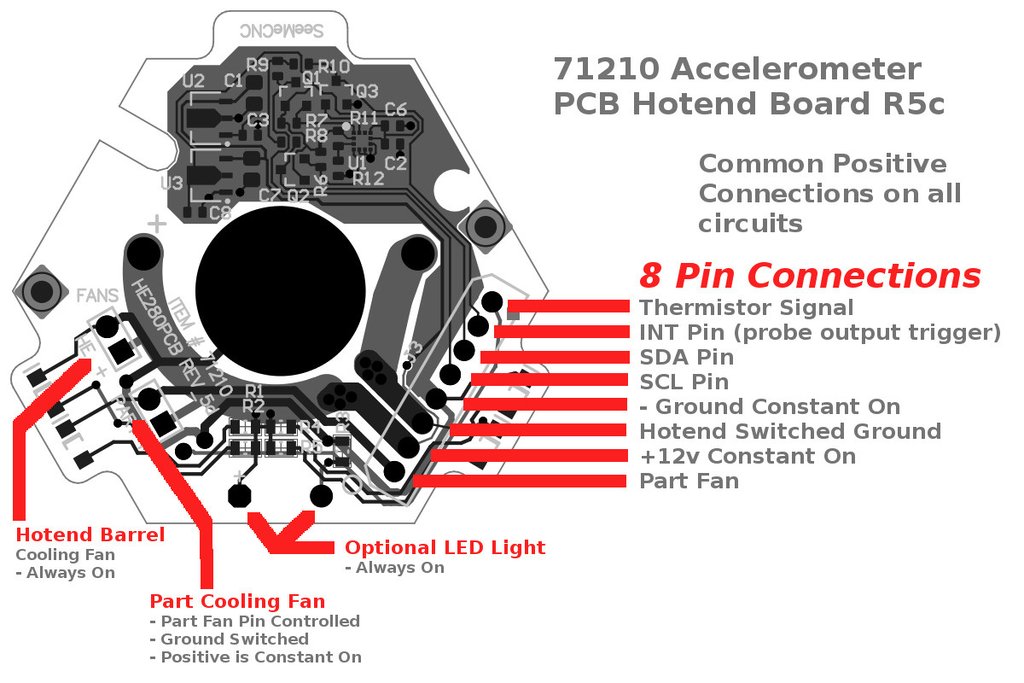

The below pictures show my wiring / setup.
I have left my heater cartridge and termocouple separate, they are not wired to the accelerometer board.


Note: Thermister signal, and hotend switched ground are not connected in my setup.

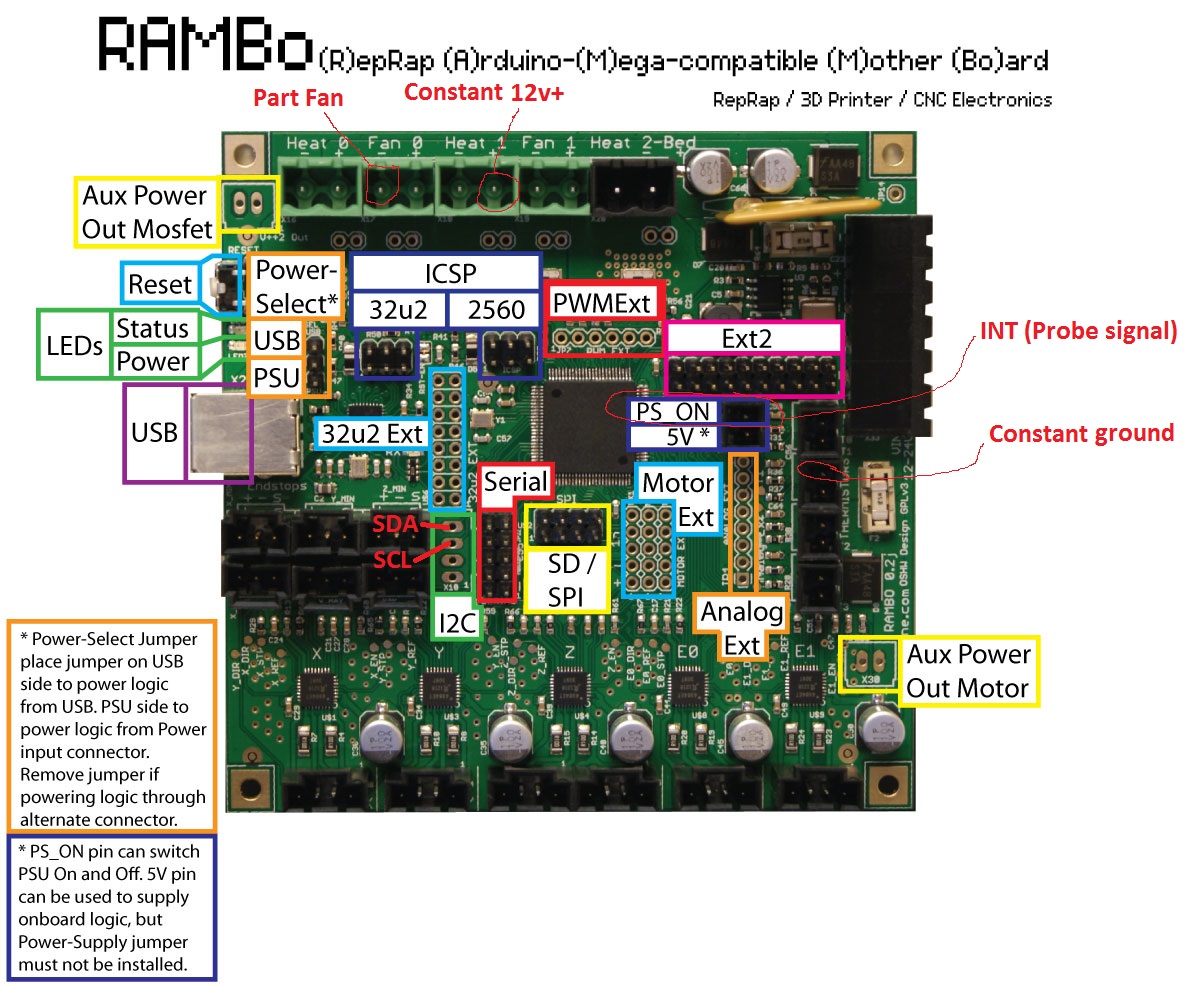

Connect wires to these pins (naming matches picture above)

I hope that helps someone.
Then you can follow the guide on firmware upgrade for the V2
