My WIP on a Tiger I Tank!

Post by DdeWaard » Sun Mar 15, 2015 7:33 pm

Hello everybody,

For some time now I've been searhing thingiverse and all of google to find a cool looking, printable yet high quality tank.
The ones already out there on thingiverse were too low detailed/not on scale or too high detailed, completely unprintable, straight from the Sketchup warehouse weighing 15Mb's orso.
Also, I LOVE the German WW2 Tiger I tank, so i decided to model my own, with 3D printing in my head and only the information the allmighty Google can give me.
I've read all about it on wikipedia, including the technical aspects and after doing some research, i've found this site: http://tiger1.info/vehicle.html which has supplied me with a ton of info.
Next to that, i use pics from the internet of actual tanks and scale models.
its going to be a model only, probably somewhere in the range of 1/48 or 1/32 with very high quality parts such as the tracks, wheels, suspension, hull and turret. of course, this makes it a large build with many parts, but easy to print!

So here are some pics, note its a WIP, almost got the turret done
I hope you guys will like it as much as I do.

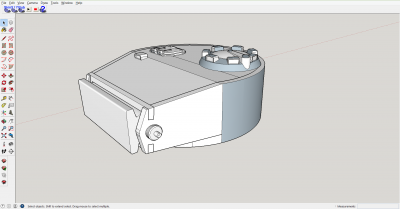

Here you see my wrk in progress, the turret already assembled.

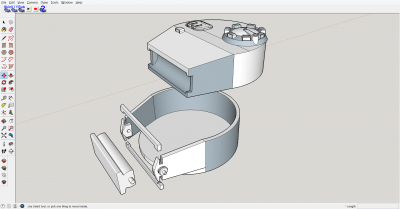

And here you see its various components so far

its components are very high quality such as the commanders hatch and the square hatch on the back of the pictures and it's all quite realistic for something that is going to be printed on an FDM machine.

It may not seem much yet, but I'm very happy for a few hours of work.
I hope to get it done in a few days/weeks, tepends of how busy i am

I hope you guys might like a big Tiger Tank sitting on your desk ;)

DanHall
Printmaster!
Posts: 43
Joined: Sun Jan 18, 2015 11:57 am

Re: My WIP on a Tiger I Tank!

Post by DanHall » Sun Mar 15, 2015 7:53 pm

Nice job, looking really good.

User avatar
Jimustanguitar
ULTIMATE 3D JEDDI
Posts: 2631
Joined: Sun Mar 31, 2013 1:35 am
Location: Notre Dame area
Contact:

Re: My WIP on a Tiger I Tank!

Post by Jimustanguitar » Sun Mar 15, 2015 9:14 pm

You'll have to scale it up big enough for a cat to ride in it :)




Looks amazing though, very detailed! I love the practical and historical prints!

User avatar
Captain Starfish
Printmaster!
Posts: 962
Joined: Tue Dec 10, 2013 5:24 am

Re: My WIP on a Tiger I Tank!

Post by Captain Starfish » Mon Mar 16, 2015 4:09 am

lol that took a turn to the unexpected! :D

Looking forward to seeing the rest of it unfold.

DdeWaard
Prints-a-lot
Posts: 22
Joined: Sat Feb 08, 2014 5:30 pm
Location: The Netherlands

Re: My WIP on a Tiger I Tank!

Post by DdeWaard » Mon Mar 16, 2015 6:45 am

Jimustanguitar wrote:You'll have to scale it up big enough for a cat to ride in it :)




Looks amazing though, very detailed! I love the practical and historical prints!



How about I model the Maus tank next and make room for a cat?
Then it'll be a cat and Maus game :)

User avatar
drunkenmugsy
Printmaster!
Posts: 115
Joined: Sat Mar 01, 2014 2:26 pm
Location: Texas

Re: My WIP on a Tiger I Tank!

Post by drunkenmugsy » Mon Mar 16, 2015 9:57 am

Having wasted way to much time playing World of Tanks and using this http://wiki.wargaming.net/en/Tank:PzVI I would print one of these for my desk! Love the detail.

DdeWaard
Prints-a-lot
Posts: 22
Joined: Sat Feb 08, 2014 5:30 pm
Location: The Netherlands

Re: My WIP on a Tiger I Tank!

Post by DdeWaard » Sun Mar 22, 2015 7:46 pm

Alright, so, after a long time I finally got back to work on the tiger, I just never get the time to just sit down and work on this thing.
The research takes a longtime, all the measurements, pictures, scematics. it takes a long time to make all those things into a model.
Espeially the mantlet (thick frontal armor plate bolted to the gun axle) took a long time to make, no matter how easy it looks, from low pixeled google pics its pretty hard.

Now, about a week later, I have only been able to almost complete the turret, all that remain are a small ventilation cap on the roof, a hatch on the right rear side of the turret and a pistol slit on the left rear side.
I hope to be able to finish and start printing the turret by tuesday, I have already printed the storage bin on the rear of the turret and the commanders cupola, just for tests.

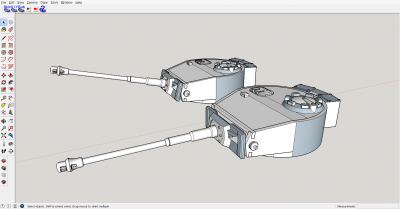

So here are some pics:

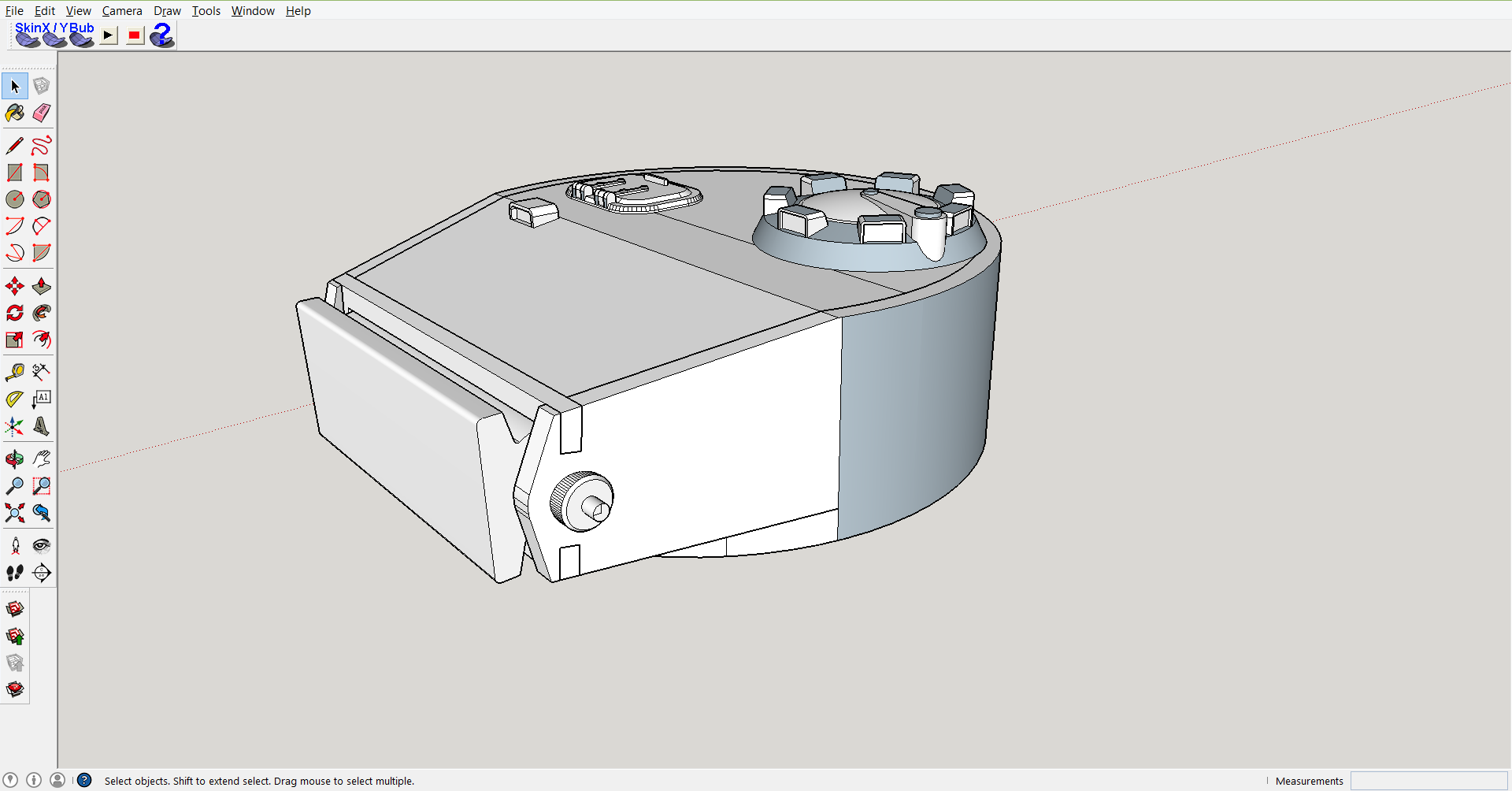

so this is the work so far, I love how it looks. the turret is almost finished.

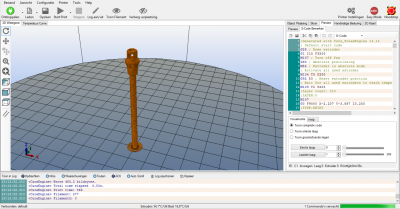

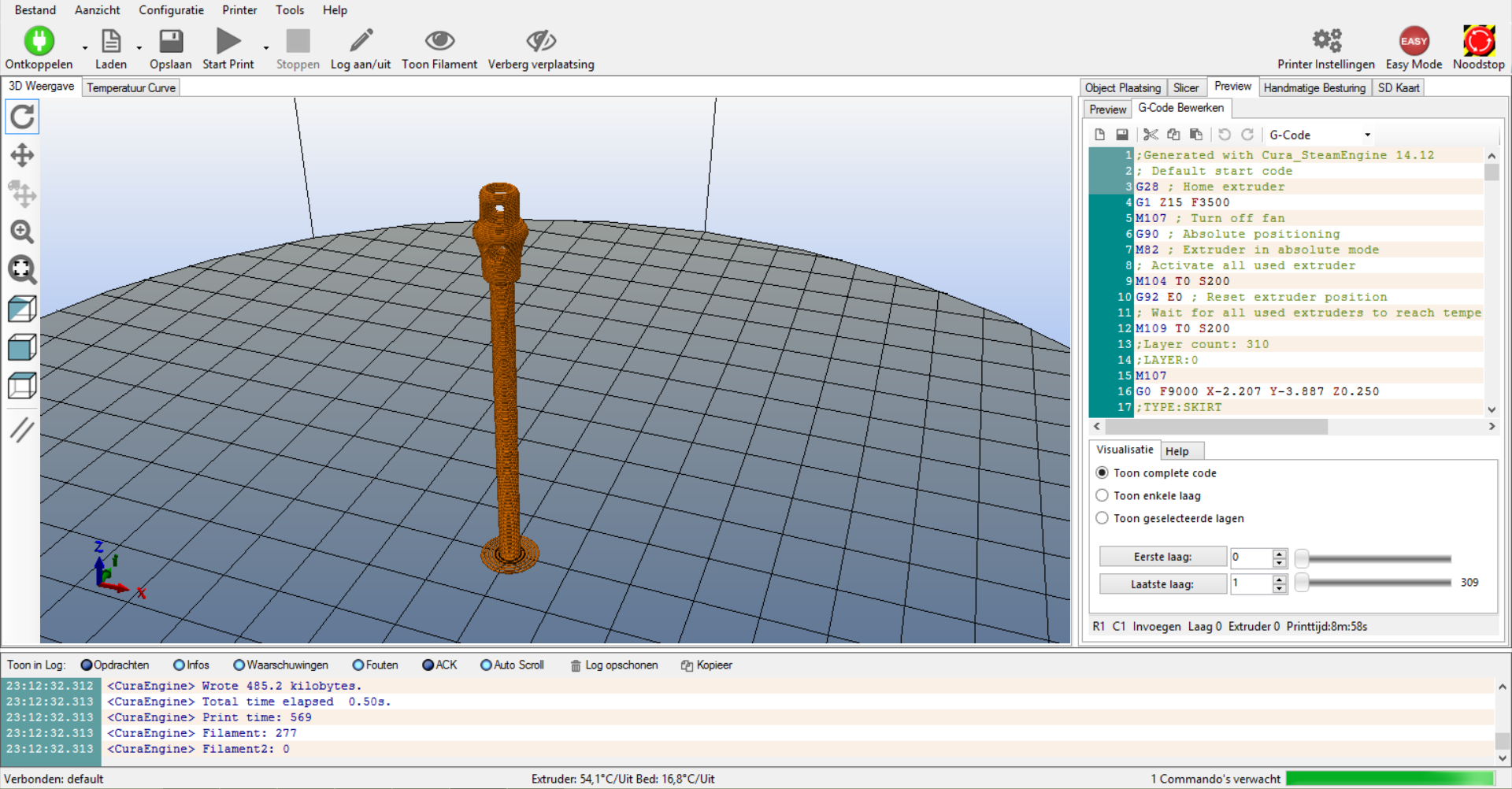

and this is the diameter of the barrel, pretty thin huh? I am going to make the barrel in sections like this, so it prints easier. all you'll have to do is drop a droplet of glue in between the parts and the gun is made.


I hope you guys like my work so far, if anybody wishes to print te turret before the main body will be done, i'll gladly upload the files.

Take care,

DdeWaard

User avatar
teoman
ULTIMATE 3D JEDDI
Posts: 1783
Joined: Sat May 24, 2014 5:43 pm

Re: My WIP on a Tiger I Tank!

Post by teoman » Sun Mar 22, 2015 8:18 pm

Instead of glue, melt some filament in acetone and you have your glue. And as a bonus it is exactly the same color as your parts.
When on mobile I am brief and may be perceived as an arsl.

User avatar
McSlappy
Printmaster!
Posts: 809
Joined: Wed Dec 11, 2013 9:11 pm
Location: Queensland, Australia
Contact:

Re: My WIP on a Tiger I Tank!

Post by McSlappy » Sun Mar 22, 2015 8:26 pm

Looking awesome! Beware of Sketchup's tendency to flip faces willy-nilly.
I loved my Rostock so much I now sell them in Oz :)

DdeWaard
Prints-a-lot
Posts: 22
Joined: Sat Feb 08, 2014 5:30 pm
Location: The Netherlands

Re: My WIP on a Tiger I Tank!

Post by DdeWaard » Mon Mar 23, 2015 3:51 am

McSlappy wrote:Looking awesome! Beware of Sketchup's tendency to flip faces willy-nilly.


Oh you don't know how much I've been battling sketchup the past few years!
No matter how much I try to close all triangles on the mesh for printing, its hard to make complex pieces watertight... NetFabb for the win!
Its a pain in the A$$ sometimes but to me its the best pogram to model in for this kind of work, its so easy to make models from pictures.

User avatar
geneb
ULTIMATE 3D JEDDI
Posts: 4990
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: My WIP on a Tiger I Tank!

Post by geneb » Mon Mar 23, 2015 5:52 pm

Try DesignSpark Mechanical. It's free and the workflow is very similar to Sketchup.

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects

DdeWaard
Prints-a-lot
Posts: 22
Joined: Sat Feb 08, 2014 5:30 pm
Location: The Netherlands

Re: My WIP on a Tiger I Tank!

Post by DdeWaard » Thu May 21, 2015 6:00 pm

Hello again,

Here's my update on the Tiger tank, finally.
I haven't had much time for this project, still got my life ;)
I've been making a few testprints to perfect the turret, I think it looks awesome and that it's pretty high quality for 3d printing.
Only last week I've been able to start working on the hull after the damn turret was done.

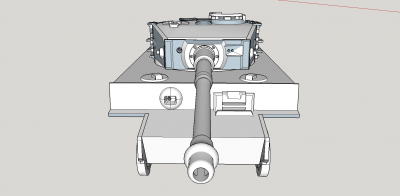

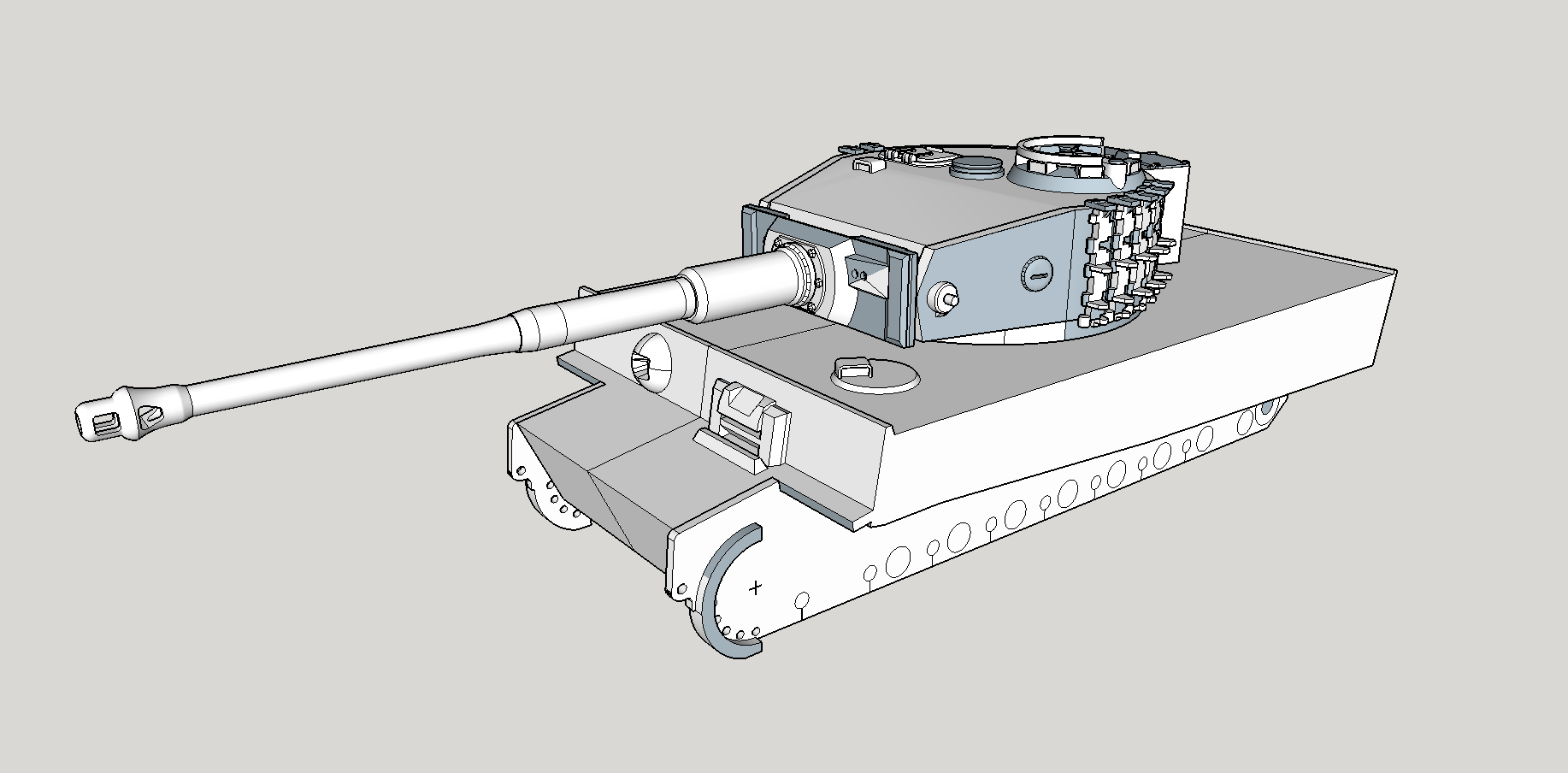

So here are some pics of the tank as far as I got it today:
