Rostock MAX v3...

Post by geneb » Wed Aug 17, 2016 10:13 am

Everyone's seen little hints about the v3...well I've got a big box full of v3 awesomeness sitting on my desk right now. :)

No pics yet, but here's a few things that are "for sure". :)

1. Power supply remains in the bottom.
2. RAMBo, LCD, and stepper motors are in the top.
3. ALL the vertical structural components are now injection molded out of glass-filled nylon (except the towers!).
4. Belt tension adjustment is done by rotating the stepper motor and not a turn-around that can tilt.
5. There's a specific location in the top to accommodate the Rasberry Pi 3. You can get one as an add-in when you order and all pre-built v3s will include it.
6. Removable connectors are back! The original Indiegogo Rostock MAX v1s included a RAMBo that had pluggable compression terminals on ALL the connector positions, not just the power connector as it is now.
7. The HE280 hot end from the Eris will be the new stock hot end for the Rostock MAX v3. The hot end design has been tweaked a bit to use heater cartridges and will include a thermal fuse as a safety measure. No more RTV on the hot end!
8. The auto-calibration system that the Eris uses will also be part of the v3.
9. No more dragging piles of wire through the towers! 1 12ga black wire in the X tower up to the RAMBo, 1 12ga red wire in the Z tower up to the RAMBo and 1 12ga black wire in the Y tower that goes down to the Onyx. The Onyx thermistor wires will also travel in the Y tower. The Onyx + connection will be straight from the power supply.

The build time is going to be very fast - you'll build the top section, then the bottom section, seat the towers, attach the carriages, mount the top and then run the belts.

More later!

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects

Mac The Knife
ULTIMATE 3D JEDDI
Posts: 1370
Joined: Sun May 11, 2014 6:18 pm

Re: Rostock MAX v3...

Post by Mac The Knife » Wed Aug 17, 2016 10:17 am

Nice!!
R-Max V2
Eris
Folger Tech FT-5 R2

User avatar
Xenocrates
ULTIMATE 3D JEDDI
Posts: 1561
Joined: Wed Sep 23, 2015 2:55 pm

Re: Rostock MAX v3...

Post by Xenocrates » Wed Aug 17, 2016 10:27 am

Just to check what #3 means, that indicates that the towers are nylon now? Or is that referring just to the vertical supports that make up the bottom and top compartments?

Another quick question. What is the temp rating on the thermal fuse, and when/at what price point do you think they will be made available for purchase? I'm assuming that 280C is achievable with the hotend at least largely stock.
Machines:
Rostock Max V2, Duet .8.5, PT100 enabled E3D V6 and volcano, Raymond style enclosure
Automation Technology 60W laser cutter/engraver
1m X-carve router

Sic Transit Gloria Mundi
01-10011-11111100001

User avatar
geneb
ULTIMATE 3D JEDDI
Posts: 4975
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Rostock MAX v3...

Post by geneb » Wed Aug 17, 2016 10:34 am

The towers are still metal. A nylon tower would be insane. :)

I don't know what the temperature rating of the fuse is - one wasn't included in my kit as they're awaiting parts.

I don't have any information on pricing.

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects

Mac The Knife
ULTIMATE 3D JEDDI
Posts: 1370
Joined: Sun May 11, 2014 6:18 pm

Re: Rostock MAX v3...

Post by Mac The Knife » Wed Aug 17, 2016 10:49 am

280 C is achievable on my Eris with the stock, resistor, HE280 hot end.
R-Max V2
Eris
Folger Tech FT-5 R2

User avatar
Xenocrates
ULTIMATE 3D JEDDI
Posts: 1561
Joined: Wed Sep 23, 2015 2:55 pm

Re: Rostock MAX v3...

Post by Xenocrates » Wed Aug 17, 2016 12:08 pm

I figured it is Mac. I was referring to the thermal fuse, as that's an intentional limiter. My pricing question was also about the fuses rather than the V3. Because if there's a thermal fuse with a sane temperature for the hotend, I am rather interested in it, as I hadn't found any yet.

And Geneb, I thought nylon towers would be a bit nuts. Thank you for confirming that they are still aluminum (You can see how "All vertical structural components are injection molded" would give that impression I hope though)
Machines:
Rostock Max V2, Duet .8.5, PT100 enabled E3D V6 and volcano, Raymond style enclosure
Automation Technology 60W laser cutter/engraver
1m X-carve router

Sic Transit Gloria Mundi
01-10011-11111100001

User avatar
geneb
ULTIMATE 3D JEDDI
Posts: 4975
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Rostock MAX v3...

Post by geneb » Wed Aug 17, 2016 12:17 pm

It's my understanding that the fuse is attached to the heat sink and has a fairly low rating.

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects

travelphotog
Printmaster!
Posts: 398
Joined: Tue Jul 15, 2014 12:30 pm
Location: Huntsville, Alabama (Marshall Space Flight Center)
Contact:

Re: Rostock MAX v3...

Post by travelphotog » Wed Aug 17, 2016 2:05 pm

In Detroit Steve was showing off the new hot end with the fuse installed. They were working to get a fuse that would trip at a safe temp to be effective as a safety measure, but not trip if there was a power failure which stopped the print and shut down the hot end fan. It is a very fine balance and they were going back to the shop and testing a number of temps for the fuses. The new cartage heater is very nice and overall the hot end looked great. It is a FAR easier build on the hot end and i am very excited to the see the changes. I also spoke with Steve and the crew about how our 713maker products will work moving forward with the new calibration boards and mounting options. While holding the V3 hot end and calibration effector in hand at Detroit, we spoke about my concerns of how to adopt our mount to work with their new system and we found it will not be an issue at all. We (713maker) are working on a mount for the calibration board that will be backwards compatible and Steve assured me that the connection on their board for the heater and such will work just fine with other hot ends like a E3d V6 and such. Once our V3 early release unit arrives, I will get right on the mount for our system to use their new calibration boards.
http://713maker.com/ Custom aluminum and carbon fiber hot end mounts for the Rostock Max and Orion.

User avatar
geneb
ULTIMATE 3D JEDDI
Posts: 4975
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Rostock MAX v3...

Post by geneb » Wed Aug 17, 2016 6:15 pm

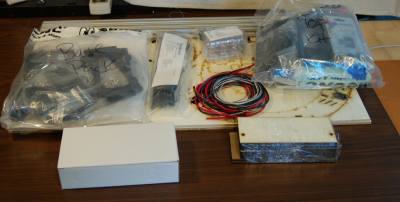

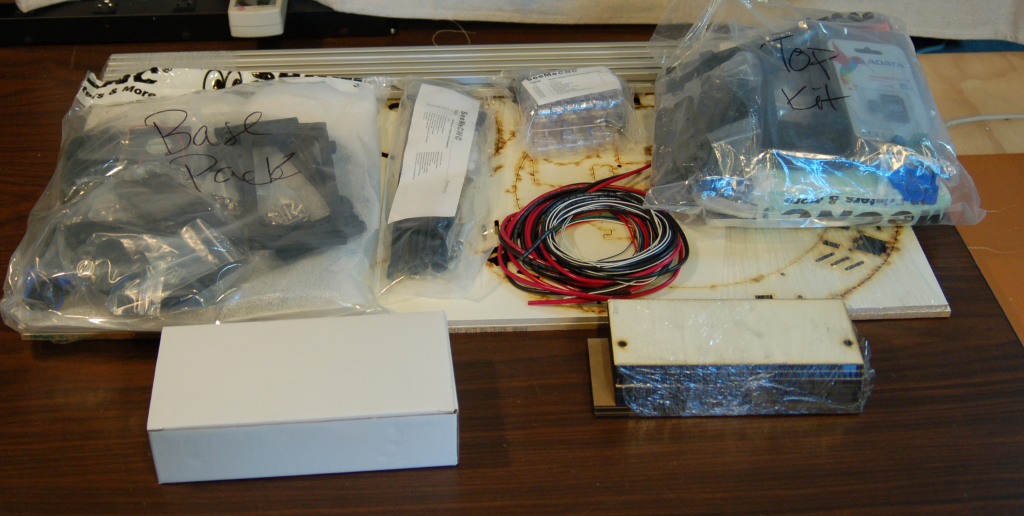

Here's the kit packaging:
