Duet v0.8.5 annotated board

[mhackney]

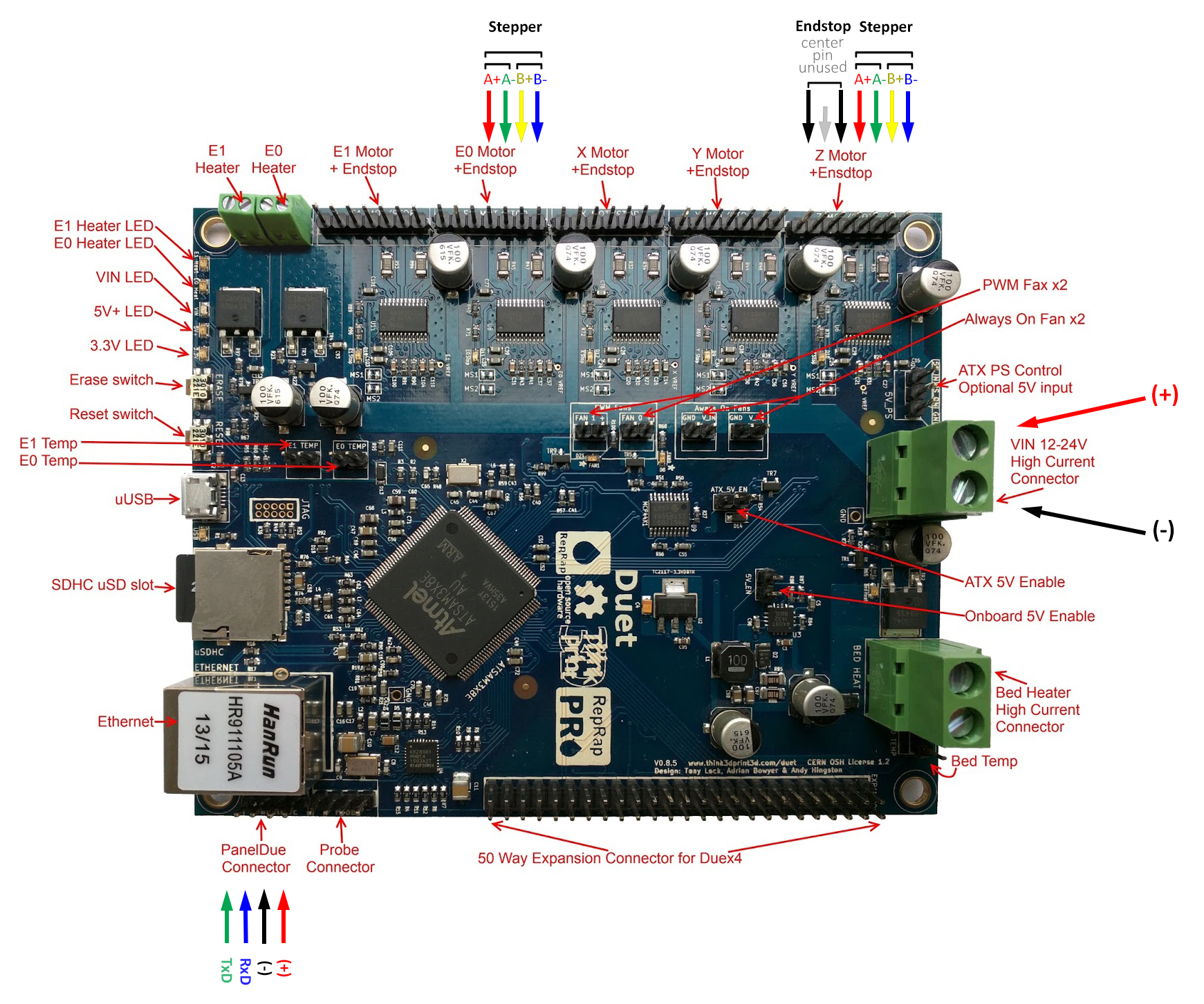

Here is an annotated photo of the Duet v0.8.5. The folks at Think3DPrint3D did the original and I annotated the stepper and endstops, power and PanelDue connector.

I'm waiting to hear back from t3p3 on the probe header.

[Eaglezsoar]

Here is an annotated photo of the Duet v0.8.5. The folks at Think3DPrint3D did the original and I annotated the stepper and endstops, power and PanelDue connector.


I'm waiting to hear back from t3p3 on the probe header.

Great post!

[0110-m-p]

Thanks for the extra annotations. I'm ordering one today for a new delta that I've been designing. This board looks very promising after reading some of the posts on here and over on the reprap forums.
